Handheld laser welding machines are becoming increasingly popular due to their versatility and ease of use. These machines are designed to be lightweight and portable, making them ideal for on-site repairs and small-scale manufacturing tasks.
Equipped with touch-screen controllers, handheld laser welders are easy to operate even for users with no welding experience. Beginners can learn to use them within a few hours, unlike traditional welding methods such as MMA, TIG, and MIG, which typically require years of practice.

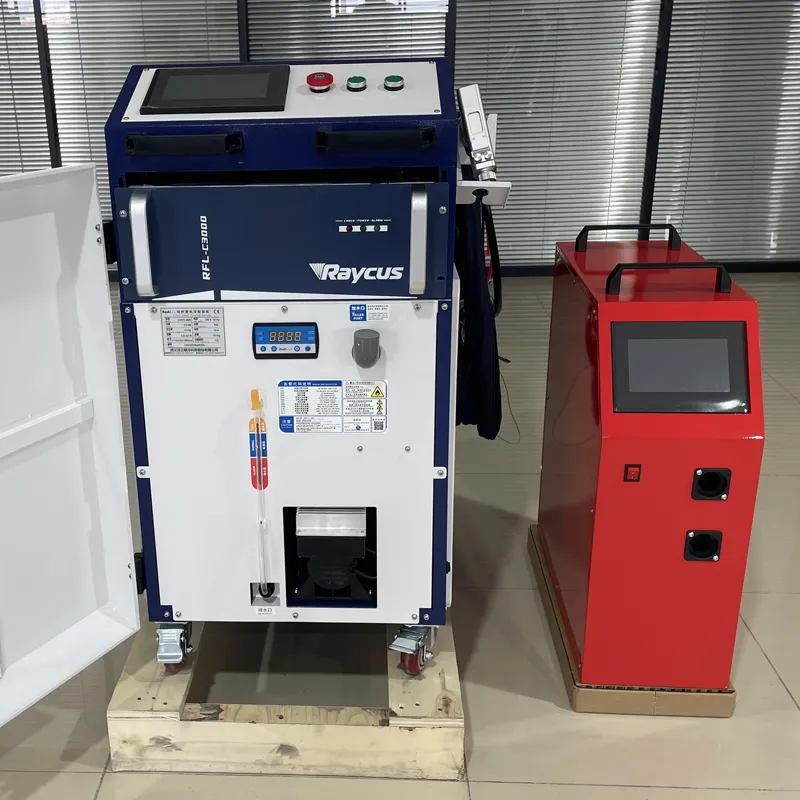

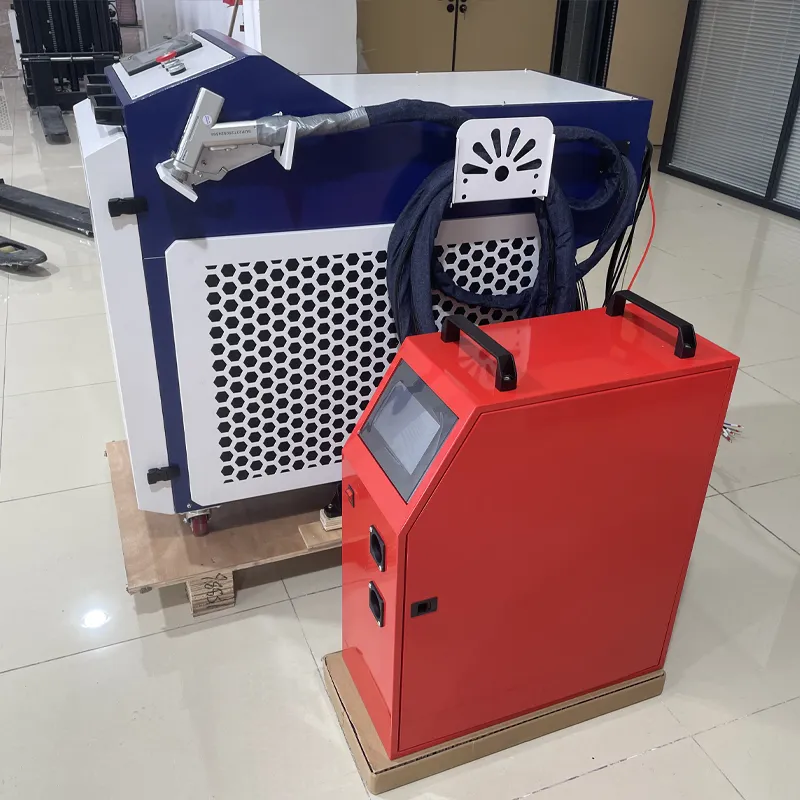

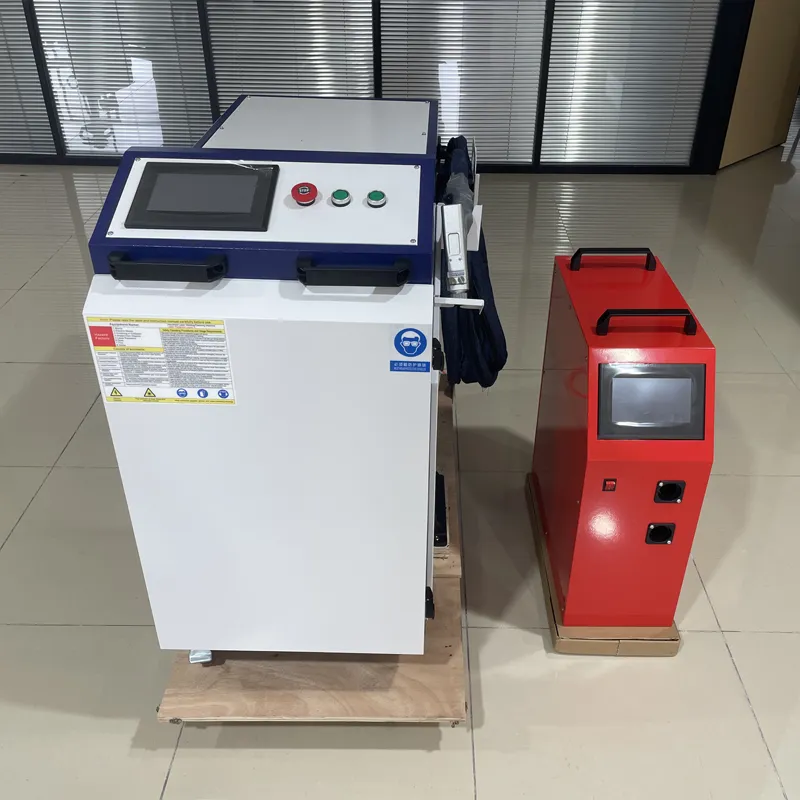

When evaluating laser welder pricing, handheld laser welding machines offer a cost-effective solution for many applications. Our machines feature high-power laser sources with power ranges from 1500W to 3000W. A 1500W portable fiber laser welder can join metal parts up to 4 mm thick, a 2000W handheld laser welder can weld metal up to 5 mm thick, and a 3000W portable laser welder can perform single-sided welding on metal up to 6–8 mm thick. With double-sided welding, it can handle metal parts twice as thick.
Key Advantages:
1. Easy to Use: Master laser welding technology in just 30 minutes. If you can use a hot glue gun, you can operate a laser welder. Quick and simple setup.
2. Excellent Quality and Consistency: Low heat input minimizes part deformation and ensures high-quality welds. Built-in preset functions guarantee consistent welding results.
3. Enhanced Safety and Comfort: Minimal spatter reduces the need for heavy protective clothing. With lower heat output, only lightweight gloves are required.

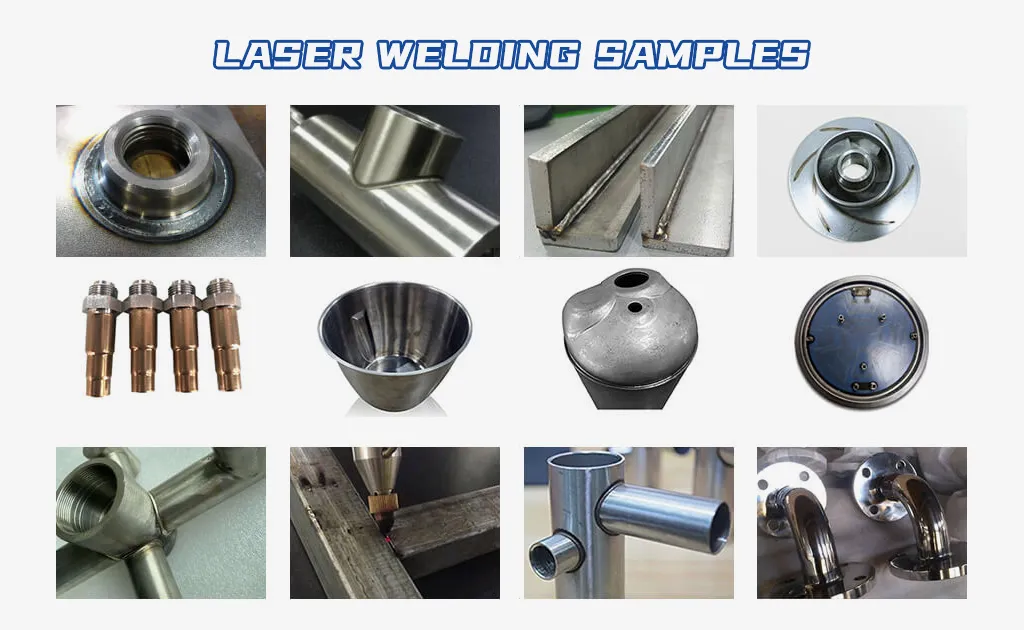

4. Wide Material Compatibility: Suitable for aluminum, copper, steel, stainless steel, and titanium.
5. Low Power Consumption: Lower energy use makes it more efficient and cost-effective.
Applications:

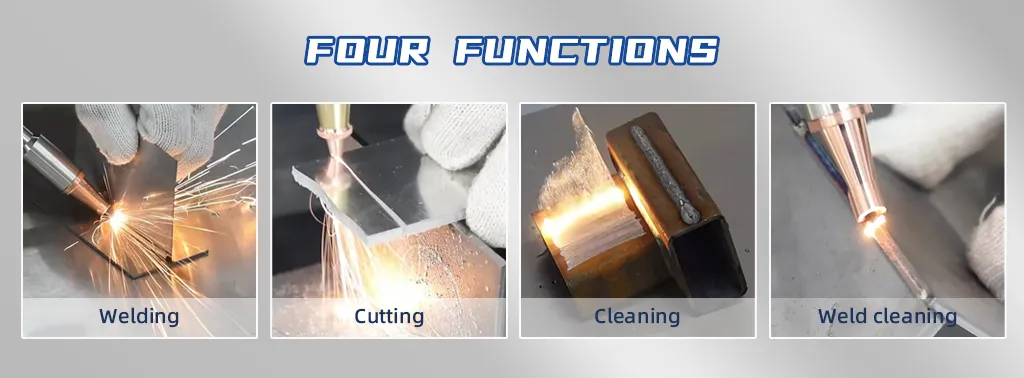

This 4-in-1 laser welding machine features cleaning, cutting, and welding modes. In the field of metal processing and manufacturing, it can efficiently weld and cut various types of metals — including stainless steel, aluminum, and copper — to produce a wide range of metal components and products.
Specifications:
|
Technical Parameters |
|||
|
Model |
HC-1500S |
HC-2000S |
HC-3000S |
|
Laser Source |
BWT/MAX/RAYCUS |
||
|
Laser Power |
1500W |
2000W |
3000W |
|
Power Adjustment Range |
10-100% |
||
|
Laser Wavelength |
1080±10nm |
||
|
Welding Gun System |
SUP22C |
||
|
Scan Width |
10-300mm |
||
|
Cooling Method |
Water Cooling |
||
|
Optical Cable Length |
10m |
||
|
Operating Voltage |
AC220V 50/60Hz |
AC380V 50/60Hz |
|
|
Ambient Temperature |
10
| ||
